Description

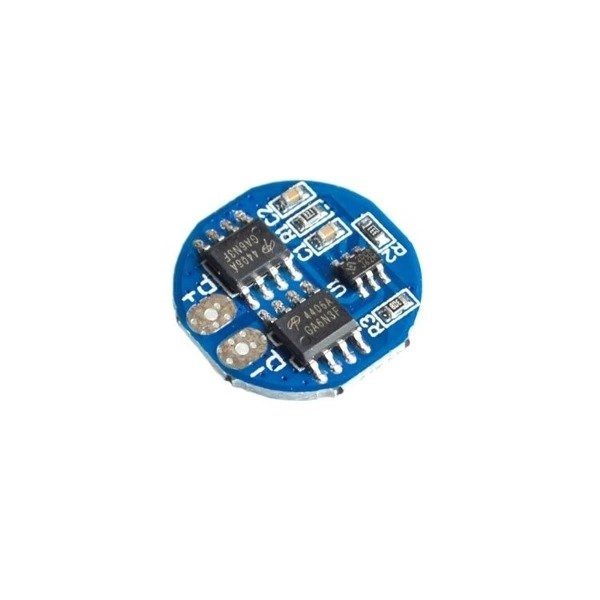

18650 2S 5A cell charging module

Charging, discharging and cell protection module for proper charging. This small board will protect the 18650 cell from overcharging, overdischarging, and short-circuiting.

More information about BMS modules, their application and how they work HERE.

Technical data

• Maximum charging voltage: 4,25-4,35 ± 0,05 V
• Dimensions: 17.5 * 17.5 * 3.2 mm
• Minimum discharge voltage: 2,5-3,0v ± 0.05v
• Maximum operating current: 5A
• Operating temperature: from -40 to +50 ℃
• Maximum instantaneous current: 7A
• Storage temperature: -40 – +80 ℃
• Internal resistance: less than 300 mOhm
• Short circuit protection
• Input voltage: 8.4V-9V

Included

• Charging and protection module for 18650 cells – 2S – 5A
