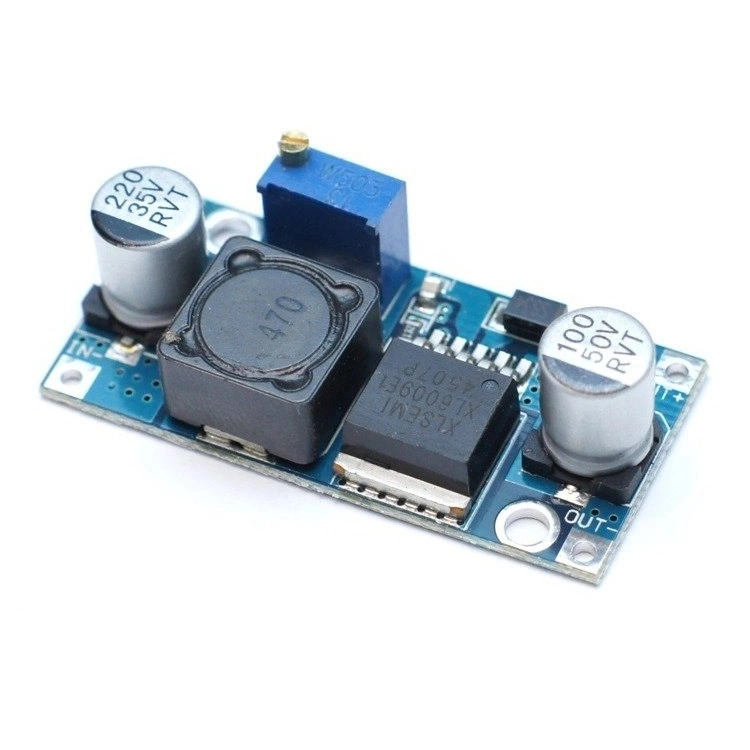

XL6009 DC-DC Inverter – 2A 4-35V Step-Up – voltage booster – (LM2577)

STEP-UP XL6009 inverter – increases voltage from 3.2-30 V to 4-35 V. This allows you to supply any circuit with the higher voltage you currently have.

Keep in mind that by increasing the output voltage, the inverter draws more current from the input and can draw up to more than 2A by which a high-current power source is recommended.

It operates on impulse, allowing it to achieve maximum efficiency with minimal power loss.

It is a circuit that will find its application in various DIY circuits, power LEDs, arduino modules, microcontroller devices, etc.

Product features

• Inverter gives possibility to supply systems with higher than available voltage.
• ARK2 screw terminals on the output and input allow simple and secure attachment of cables.
• The inverter is protected against overheating but at high input currents additional cooling must be used. We offer suitable heat sinks and thermally conductive pastes and thermopads.

Specifications of DC-DC Converter XL6009 2A:

• Module: XL6009E1
• Input voltage: 3,2-30 V
• Output voltage (potentiometer adjustable, stabilized): 4-35 V
• Input current: 3A
• Maks. output current (heatsink required): 2 A
• Switching frequency: 400 kHz
• Performance: approx. 94%
• Operating temperature: from -45° to approx. +85°
• Dimensions: 43 / 21 / 14 mm
