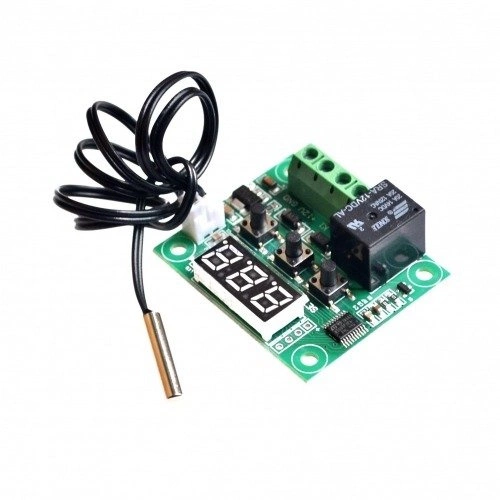

Digital Thermostat W1209 – adjustable -50°C + 110ºC

W1209 thermostat. Uncomplicated integrated thermostat module with which we can control the receiver up to 2300W.

• The module has a detachable thermistor which is located in the thimble, making it waterproof, and it measures the temperature of air as well as liquids.
• The process of setting the temperature is very simple, just press the „SET” button – then the display starts flashing and with the + and – buttons you set the desired temperature value.
• The module has heating and cooling function: H/C, depending on the selected function, e.g. H, the relay will be on below the set value until it is reached + set, or no hysteresis.
• However, function C or cooling, the relay will switch on above the set temperature and work until it is reached.
• The module remembers the set value even when the power is disconnected.

• See also the housing for the W1209 thermostat –

Technical specifications of the W1209 thermostat

• supply voltage 12V
• temperature control from -50°C to 110°C
• display resolution 0.1°C (-9.9 to 99.9°C) 1°C (remaining range)
• output load – max 20A/12VDC 5A/250VAC = 1500W
• nTC 10K measuring probe in a watertight thimble 29cm. cable
• dimensions 41x49x18mm

Programming the W1209 thermostat

• MENU – to enter the programming system, hold down the SET button for about 4-5 seconds.
• select programming mode P0 – P6 using the + and – buttons
• entering the selected mode confirm by pressing the SET button
• confirm the selected value with the SET button

• P0 – selection of C/H cooling or heating
• P1 – hysteresis tripping range selectable from 0.5 to 15°C
• P2 – upper temperature limit (default 110*C) range -45°C to 110°C
• P3 – lower temperature limit (default -50*C) range -50°C to 110°C
• P4 – thermometer calibration in the range of -7°C to 7°C (set when temperature readings are erroneous)
• P5 – relay activation delay time in the range of 0min to 10min
• P6 – too high temperature alarm can be set 0 to 110°C
• switching on the + and – buttons at the same time when the supply voltage is switched on resets to the factory settings

Additional materials W1209 thermostat

Included

• Digital Thermostat W1209 – adjustable -50C +110C – 1 pc. + waterproof thermometer 1pc.
