Description

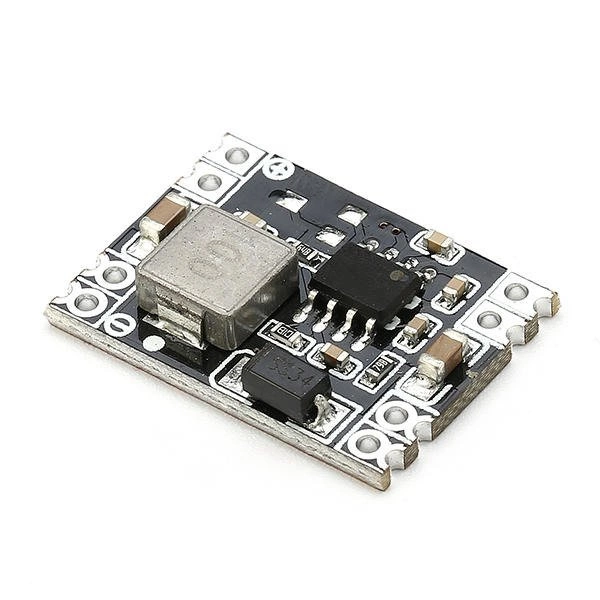

Mini Inverter to lower voltage from 7-26V to 5V

Mini Step-Down Inverter that changes voltage from 7-26V to 5V range. The circuit works only as a voltage reducer. Small size allows inverter to be placed in small electrical boxes.

Technical data

• Input voltage: 7V-26V
• Output voltage: 5V
• Output current: 3A (maximum), in case of continuous operation, the current should not exceed 1.6A
• Conversion efficiency: 96% (maximum)
• Output fluctuation: <30mV
• Operating temperature: -40 ℃ -85 ℃
• Dimensions: 22.3x17x4.2 mm

NOTES

• Incorrect connection of power supply polarity will cause damage to the inverter- warranty will not be honored
• This device is for experienced do-it-yourselfers, basic electronics knowledge and soldering skills are required. The company is not responsible for damages resulting from lack of soldering skills or poorly made electrical installations.
• Check the output voltage and adjust with the potentiometer to the correct one and only then connect the receiving device.
